RVR Series
Multi-Heads Modular Machine Tool With 6/8 Station Vertical Rotary Table
- Completes all machining in a single setup, ensuring high precision and efficiency

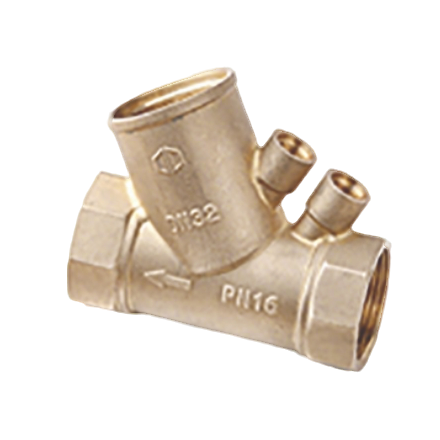

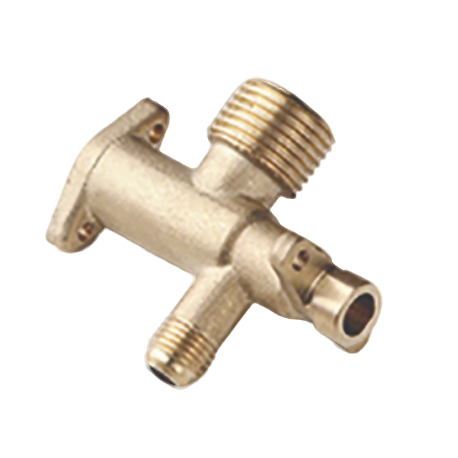

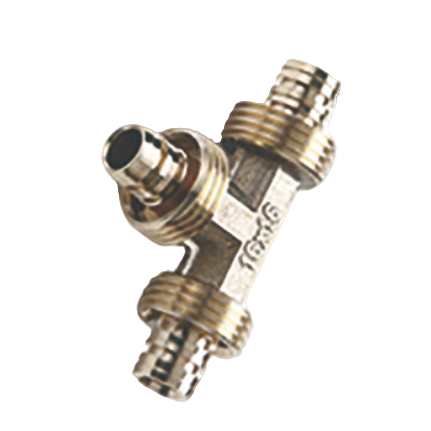

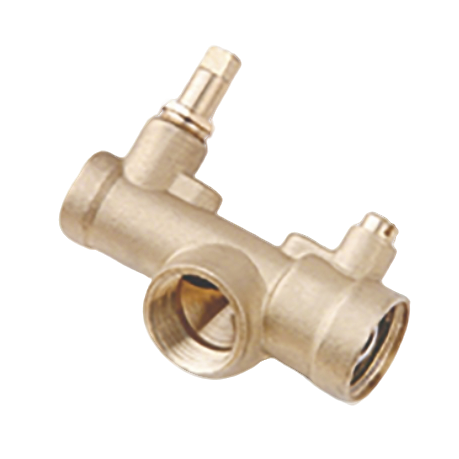

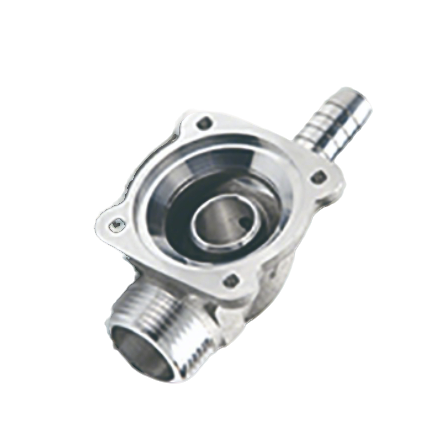

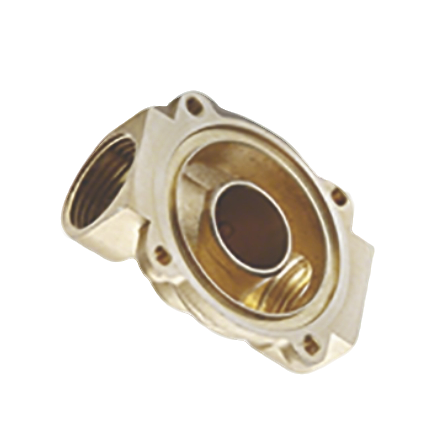

- Designed for manufacturing lead-free ball valves, gate valves, angle valves, globe valves, balance valves, check valves, pressure reducing valves, and tee fittings.
- Adaptable of machining brass, low-leaded brass, die-cast aluminum, and forged aluminum.
APPLICATION AREA
One clamp, all done — easy automated machining for valves and fittings.
RVR Series
| RVR-700 | RVR-965 | |
|---|---|---|
| Applicable Valve Size | ½–1 Inch | 1½–2 Inches |
| Time Per Part | 6~8 Seconds | 8~10 Seconds |
| Power Heads Configuration | 6-12 Power Heads (Left, Middle, Right Flexible Arrangement) | 8-14 Power Heads (Left, Middle, Right Flexible Arrangement) |
| Power Head Functions | Drilling, Boring, Tapping, Thread Cutting, Facing | |
| Control System | Motion Controller + Multi-Axis Multi-Channel CNC | |
| Spindle Stroke | 120 mm (Axial) | |
| Drilling Spindle Speed | 1200–1500 RPM | |
| Tapping Spindle Speed | 800–1000 RPM | |
| Spindle Rotation Power | 4–5.5 kW | 4–7.5 kW |
| Spindle Feed Motor Power | 0.75–1.5 KW | 0.75–2.0 kW |
| Rotary Table For Workpiece Mounting | 6-Position Vertical Rotary Table | 8-Position Vertical Rotary Table |
| Optional Accessories | 3-Axis Robot / Articulated Robot (Auto Loading/Unloading) | |
| Working Air Pressure | 0.6–0.8 MPa | |
| Power Supply | 380V 50Hz (3-Phase, 4-Wire) | |
| Total Installed Power | 42–84 kW | 50–100 kW |
| Dimensions | 3600×2600×2800 mm (L×W×H) | 3700×3400×3500 mm (L×W×H) |
| Weight | 7,000kg | 10,000kg |
